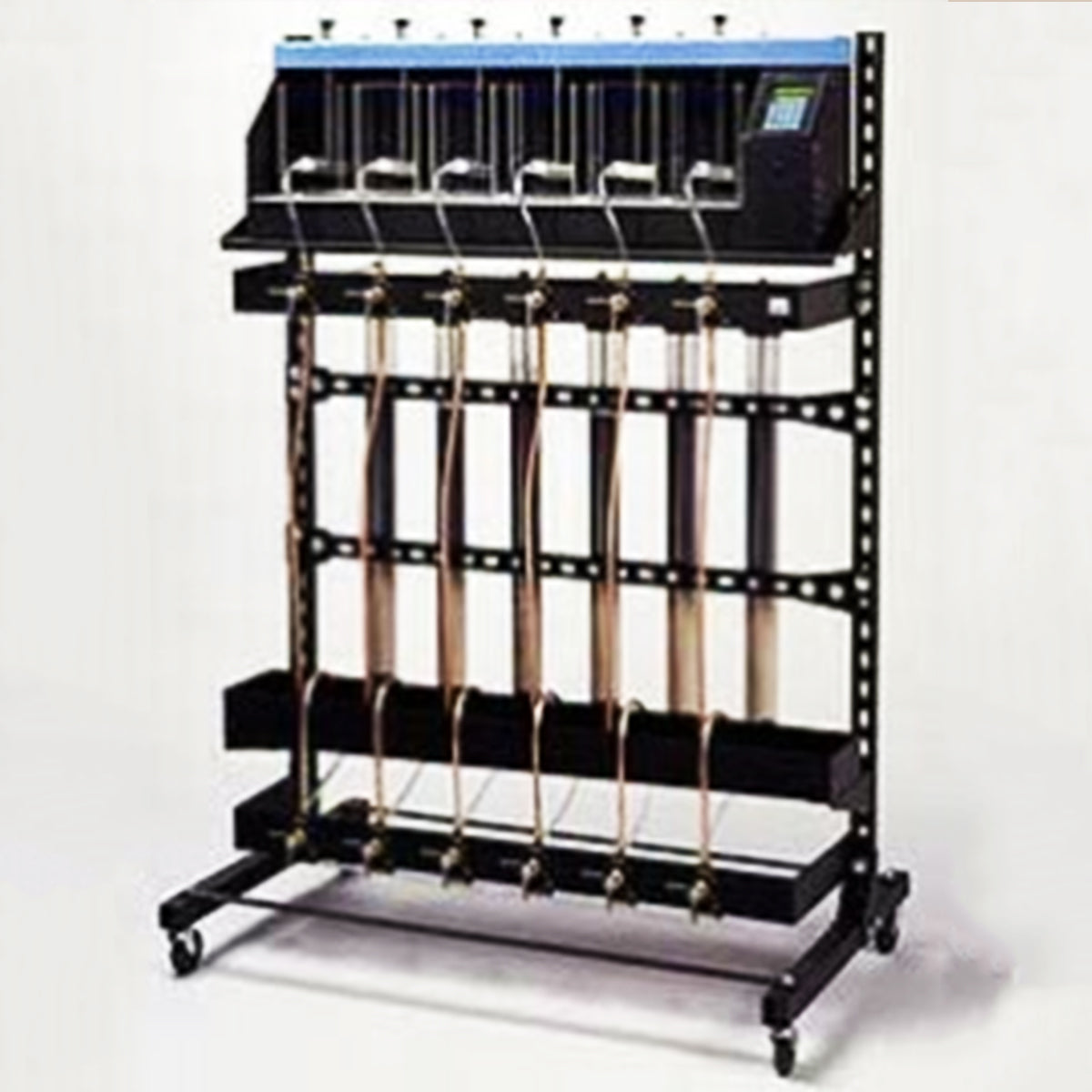

Column Filtration System

Column Filtration System

Regular price $5,100.00 USD
Regular price Sale price $5,100.00 USD
Sale Sold out
Style
  • Simulate the process of a direct-filtration water treatment plant. The device is an accessory piece of equipment for the traditional Phipps & Bird JarTest Stirrer with Square B-KER2s (not included)
  • After water samples are agitated through the flash and flocculation stages, the samples are allowed to gravity drain through filter columns producing a simulated “clean” water test sample. A water line from the plant’s service line can be connected to the device to backwash the filter columns when loading the granular media or when cleaning the media after a test procedure.
  • The device consists of a number (4 or 6) of filter columns (2″ ID clear PVC) and sets of valves to control the flow of water samples from the sample B-KER2s and service water during the backwash process. All components are mounted on a portable rack with casters. The CFS mounted on the portable rack can be used in the lab or moved to a more convenient location within the treatment plant.
  • Dimensions:
    • Height: 60″
    • Base Width: 4-Place: 34″ 6-Place:
    • 46″ Depth: 30″
    • Casters: Swivel (front w/Brake), 3″ x 1″ Black Rubber Wheels
    • Frame: CRS and “Galvaneal” Steel, Powder Coated Galvanized Steel Fastener Hardware
    • Valves: 3-way Brass
    • Tubing: 3/8″ OD x 1″ ID” Copper and Flexible Vinyl
    • Filter Columns: 2″ Clear PVC
